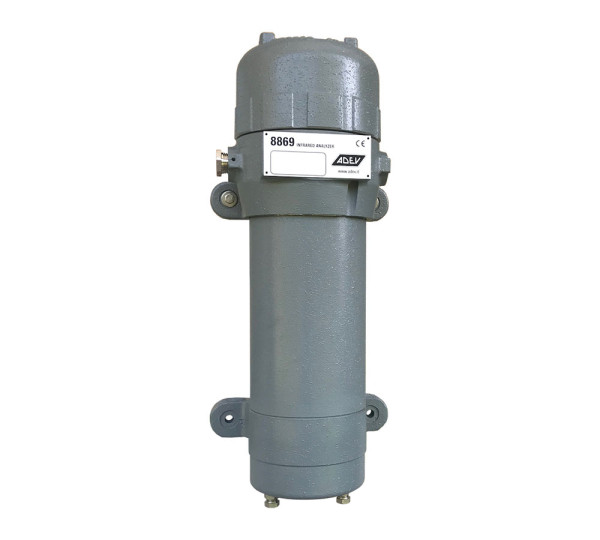

8869 Infrarot Multi-Gas-Analysator

8869 is a rugged process analyser for measuring up to 3 IR-absorbing gases in heavy duty applications in safe area and hazardous area with the best ATEX protection mode (Zone 1 / 21).

8869 is a rugged process analyser for measuring up to 3 IR-absorbing gases in heavy duty... mehr
Produktinformationen "8869 Infrarot Multi-Gas-Analysator"

8869 is a rugged process analyser for measuring up to 3 IR-absorbing gases in heavy duty applications in safe area and hazardous area with the best ATEX protection mode (Zone 1 / 21).



Designed to withstand the most severe process conditions, this resilient analyser have no choppers or other moving parts that may affect the reliability.



Measureable Gas

- Acetylene [C2H2]

- Carbon Monoxide [CO]

- Ethylene Oxide (ETO) [C2H4O]

- Nitric Oxide [NO]

- Styrene [C8H8]

- Vinyl Chloride (VCM) [C2H3Cl]

- Ammonia [NH3]

- Ethanol [C2H6O]

- Hydrogen Chloride [HCl]

- Nitrous Oxide [N2O]

- Sulfur Dioxide [SO2]

- Water [H2O]

- Carbon Dioxide [CO2]

- Ethylene [C2H4]

- Methane [CH4]

- Propane [C3H6]

- Toluene [C7H8]

- Xylene [C8H10]



Main Features

Extreme Roughness

- No choppers and other moving parts

- Wet parts in selected materials for use with gas like pure Ammonia, VCM, HCl and other demanding streams

- Resistant to the most severe industrial environments



High Performances

- Designed to measure up to 3 IR-absorbing gases with a unique sensing unit

- Precision optical filters minimize effects of background gases

- Single beam source and no gas-filled cells

- A unique source-emission control system allows up to 20% windows fouling without effect on accuracy.

- Sensing unit temperature controlled

- Insensitive to ambient temperature variations



Easy Maintenance

- The sensing unit can be easily disassembled for field maintenance and cleaning.

- Modular construction

- Fast access to the inner PCB just unscrewing the housing cap



European Compliance

- Low Voltage Directive 2014/35/EU

- EMC Directive 2014/30/EU

- Directive ATEX 2014/34/EU (optional)





ATEX

ATEX certification for Zone 1 / Zone 21 with protection mode:

II 2 G D     Ex db IIC T6 Gb

Ex tb IIIC T85°C Db

IP65



ATEX Certificate Number CESI 03 ATEX 130

Spezifikation

Performance Specification

Accuracy

± 1% of span (output signal).

Further improvable with autocalibration.

Repeatability

± 0.3% of span (short term).

Reproducibility

24 hours: ± 1% of span.

Linearity

with control unit: better than ± 0.5% of full scale

Response Time

Initial: less than 1 sec.;   90% of step-change: 6 sec.

(with max. 1000 cc/min. flow rate)

Drift (without autocalibration)

Zero: max. ± 1% of span per week
Span: max ± 1% of span per week

Amb. Temp. Influence

± 0.05% of span per °C

Atm. Pressure Influence

± 0.1 ÷ 0.18 % of reading per hPa

Flow Rate Influence

< 0.5% of span over flow variation

from 250 to 2000 cc/min.

Line Voltage Influence

max. 0.02% of span, for each 1% change of power voltage.

Gas Interference

Depending of gas. Typically less than 2% of span



Operative Specification

Sample Requirements

Flow Rate: 250 ÷ 2000 cc/min.

Pressure: min. 3000 Pa (with filter & flow meter).

Output

non-normalized output current that functions as input of the selected ADEV control unit

Relative Humidity

90% maximum.

Operation Temperature

-10 ÷ +50°C (14 to 122 °F).

Temperature controlled

at 65°C (or higher depending on the application)

Storage Temperature

+70°C (158 °F) max.

Power Requirements

24 ÷ 30 Vdc, 45 VA from dedicated power supplier.

Pneumatic Connections

¼” or 6 mm OD tubing (compression fittings)

Wiring Connections

2 openings for GK 1/2" (cable grip or conduit).

Weitere Infos

Applications

- Heat treatments (furnace atmosphere, carburizing, nitriding)

- Iron and steel industry

- Blast furnaces and combustion processes

- Sulphur Production

- Biogas & Landfill Gas

- Gas production industry (gas purity)

- Copper melting furnaces

- Water measurement in high concentration and at high temperature

- ETO sterilizing processes

- In general, selective measurement of any gas with infrared absorption spectrum



Sampling System

The 8869 needs an external sampling system able to deliver an almost clean sample gas to the analyser at the proper temperature, pressure and flow rate.

ADEV has a wide experience in process and can provide the 8863 analyser combined with a sample and condition system designed for the specific application requirements. Contact ADEV for details.



Measuring Principle

The heart of the model 8869 Infrared Analyser is the cell assembly, which consists of:



2 helically-wound Nichrome wires which provide the I.R. source

1 temperature-controlled sample cell in which the sample circulates

1 detector assembly with: one measuring detector with an interference filter focused on the selected IR absorption band for the gas to be analysed; and one reference detector with an interference filter with a band able to compensate ageing effects, dirty built-up on the optical path and background gas variations.

A very particular innovative technique allows a perfect system balance that eliminates drifts and the automatic restore of the sensitivity by controlling the energy that reaches the detector.



This design can be expanded up to 3 gas variables.
