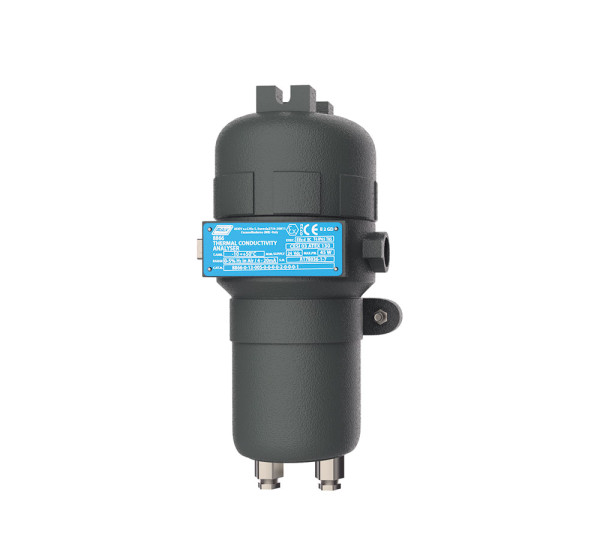

8866 is an analyzer for harsh environment that allows very accurate and stable in line analysis of a gas in a binary (or almost binary) mixture, taking advantage of its own specific thermal conductivity, respect to the background gas.

8866 is an analyzer for harsh environment that allows very accurate and stable in line analysis... mehr
Produktinformationen "8866 Wärmeleitfähigkeits-Analysator"

8866 is an analyzer for harsh environment that allows very accurate and stable in line analysis of a gas in a binary (or almost binary) mixture, taking advantage of its own specific thermal conductivity, respect to the background gas.



The weatherproof and explosion proof 8866 is designed for field installation in the most severe conditions, minimizing the sample conditioning requirements.



Measureable Gas

- Hydrogen [H2]

- Helium [He]

- Air [Air]

- Sulfur Dioxide [SO2]

- Acetylene [C2H2]

- Argon [Ar]

- Nitrogen [N2]

- Special 3-Ranges Calibration for Hydrogen Cooled Generators [TR]

- Carbon Dioxide [CO2]

- Nitrous Oxide [N2O]

- Methane [CH4]



Main Features

Extreme Roughness

- No inner moving parts

- Wet parts in AISI316 and glass

- Resistant to the most severe industrial environments



High Performances

- Sensing unit temperature controlled

- Insensitive to ambient temperature variations

- Installation position and vibration don’t alter the accuracy and stability of the measure

- Available as 4-20 mA transmitter or combined with a powerful microprocessor-based control unit



Easy Maintenance

- Modular construction

- Fast access to the inner PCB just unscrewing the housing cap

- Possibility to remove the entire sensing unit from the housing just by unscrewing 2 screws and leaving her housing connected to the sampling system.



European Compliance

Low Voltage Directive 2014/35/EU

EMC Directive 2014/30/EU

Directive ATEX 2014/34/EU (optional)



ATEX

ATEX certification for Zone 1 / Zone 21 with protection mode:

II 2 G D     Ex db IIC T6 Gb

Ex tb IIIC T85°C Db

IP65



ATEX Certificate Number CESI 03 ATEX 130

Spezifikation

Performance Specification

Accuracy

± 1% of span (output signal). Further improvable with autocalibration and four port version with reference gas

Repeatability

± 0.3% of span (short term).

Reproducibility

24 hours: ± 1% of span.

Linearity

better than ± 0.5% of full scale

Response Time

H2: Initial < 1 sec.;  60%: 13 sec.;  90%: 23 sec.;  99%: 40 sec.

CO2: Initial < 2 sec.;  60%: 24 sec.;  90%: 45 sec.;  99%: 80 sec. (with max. 2000 cc/min. flow rate)



Fast response version: T90 : < 5 sec.

Drift

Zero: max. ± 1% of span per week
Span: max ± 1% of span per week (without autocalibration).

Ambient Temp. Influence

depend on range; typically < 1% of FS over the entire temperature range (-10°C  ÷  +50°C)

Pressure Influence

none for pressure variations between 0.1 and 10 bars (a)

Flow Rate Influence

less than 0.5% of span over flow range of 250 to 1000 cc/min.

Line Voltage Influence

max. 0.02% of span, for each 1% change of power voltage.



Operative Specification

Sample Requirements

Flow Rate: 250 ÷ 1000 cc/min.
Pressure: 3000 Pa minimum (with filter and flow meter).

Range

Refer to ordering information

Output

non-normalized output current that functions as input of the selected ADEV control unit

Relative Humidity

90% maximum.

Operation Temperature

-10 ÷ +50°C (14 to 122 °F).

Temperature controlled

at 50°C

Storage Temperature

+70°C (158 °F) max.

Power Requirements

24 ÷ 30 Vdc, 45 VA from dedicated power supplier.

Pneumatic Connections

¼” or 6 mm OD tubing (compression fittings supplied)

Wiring Connections

General purpose: 2 openings for G 3/8" (PG 13 cable grip).
Ex-Proof: 2 openings for GK 1/2" (cable grip or conduit).

Weitere Infos

Applications

- Heat treatments

- Iron and steel industry

- Galvanizing furnaces

- Copper melting furnaces

- Nuclear plants and electric power industry

- Hydrogen cooled generators

- Measure of H2 in hydrocarbons in petroleum industry

- Biogas

- Hydrogen generators

- Gas production industry (purity monitoring of H2, Ar, N2, He, CO2, N2O)

- Synthesis gas & Fertilizers



Sampling System

The 8866 needs an external sampling system able to deliver an almost clean sample gas to the analyser at the proper temperature, pressure and flow rate.

ADEV has a wide experience in process and can provide the 8863 analyser combined with a sample and condition system designed for the specific application requirements. Contact ADEV for details.



Measuring Principle

The Cell Block assembly is made of stainless steel construction with two identical internal cells: the measuring cell and the reference cell. A highly stable thermistor is mounted in each cell.

These matched thermistors form the active arms of a bridge circuit: the unbalanced current of the bridge provides the means of measuring the relative ability of the sample and reference gases to conduct heat away from their respective thermistors to the cell wall, which is held at a constant temperature.

The standard two port version is used for zero-based ranges and has reference side sealed (air-filled). For suppressed ranges from 95%, the use of the four port version, with specific flowing reference gas, increase the accuracy to the maximum level.
