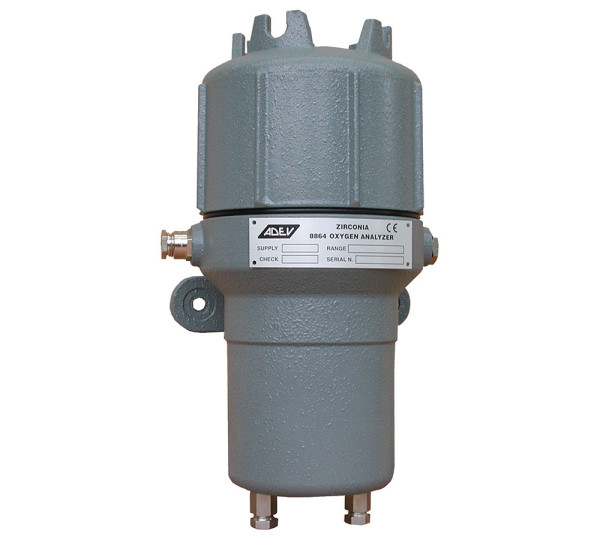

8864 Zirkoniumoxid Sauerstoffanalysator

Rugged Zirconia analyser for ppm or % Oxygen measurements in combustion & inert gas. The instrument features a special Zirconium Oxide sensor with reference to the solid state (micro-pod technology) eliminating the need for a reference air flow.

Rugged Zirconia analyser for ppm or % Oxygen measurements in combustion & inert gas.... mehr
Produktinformationen "8864 Zirkoniumoxid Sauerstoffanalysator"

Rugged Zirconia analyser for ppm or % Oxygen measurements in combustion & inert gas.



The instrument features a special Zirconium Oxide sensor with reference to the solid state (micro-pod technology) eliminating the need for a reference air flow.



The weatherproof and explosion proof 8864 is designed for field installation in the most severe conditions, minimizing the sample conditioning requirements



Measureable Gas

Oxygen [O2]



Main Features

Extreme Roughness

- No inner moving parts

- Installation position and vibration don’t alter the accuracy and stability of the measure

- Insensitive to ambient temperature variations



High Performances

- Extremely fast response time

- Excellent long term stability

- Sensing unit temperature controlled

- Available as 4-20 mA transmitter or combined with a powerful microprocessor-based control unit



Easy Maintenance

- Modular construction

- Fast access to the inner PCB just unscrewing the housing cap

- Possibility to remove the entire sensing unit from the housing just by unscrewing 2 screws and leaving her housing connected to the sampling system.



European Compliance

- Low Voltage Directive 2014/35/EU

- EMC Directive 2014/30/EU

- Directive ATEX 2014/34/EU (optional)





ATEX

ATEX certification for Zone 1 / Zone 21 with protection mode:

II 2 G D     Ex db IIC T6 Gb

Ex tb IIIC T85°C Db

IP65



ATEX Certificate Number CESI 03 ATEX 130

Spezifikation

Performance Specification



Accuracy

with control unit: ± 1% of span or ± 1 ppm (whichever is worse)
transmitter: ± 2% of span or ± 0.05% O2 (whichever is worse)

Repeatability

± 0.5% of span (short term).



Linearity

better than ± 1% of full scale



Response Time

Initial < 0.1 sec.;  90%: < 1 sec.
(with max. 1500 cc/min. flow rate)



Drift

Zero: max. ± 1% of span per week
Span: negligible



Ambient Temp. Influence

max. ± 0.06% of reading per °C



Atm. Pressure Influence

1% of reading per 1% change in ambient pressure



Flow Rate Influence

less than 0.5% of span over flow range of 250 to 1000 cc/min.



Line Voltage Influence

max. 0.02% of span, for each 1% change of power voltage.



Gas Interference

combustible gases + O2 reduce the measure





Operative Specification

Sample Requirements

Flow Rate: 250 ÷ 1000 cc/min.
Pressure: 3000 Pa minimum (with filter and flow meter).

Range

Refer to ordering information

Output

Standard 8864 sensor output: logarithmic 50 mV/decade     functioning as input of control unit that operates calculation, linearization and retransmits the isolated output current.

Transmitter version: 4-20 mA proportional to ordered range; max. load 500 Ω (or 350 Ω with galvanically insulated module)

Diagnostic NV Logical Output (non-valid)

Logical Non Valid output from relay free contact. Normally supplied in fail safe condition (triggered relay and closed     contact if not in alarm). Can be modified in filed

Relative Humidity

90% maximum.

Operation Temperature

-10 ÷ +50°C (14 to 122 °F).

Temperature controlled

at 720°C

Storage Temperature

+70°C (158 °F) max.

Power Requirements

22 ÷ 30 Vac, 50 VA from dedicated power supplier.

Pneumatic Connections

¼” or 6 mm OD tubing (compression fittings supplied)

Wiring Connections

General purpose: 2 openings for G 3/8" (PG 13 cable grip).
Ex-Proof: 2 openings for GK 1/2" (cable grip or conduit).

Weitere Infos

Applications

- Gas production industry (purity monitoring of N2, Ar, He, CO2)

- Air Separators

- Nitrogen Generators

- Heat treatments

- Mixers

- Welding Gas

- Combustion Gas

- Endothermic Generators



Any application for ppm or % O2 measurement in inert gas or combustion gas



Sampling System

The 8864 needs an external sampling system able to deliver an almost clean sample gas to the analyser at the proper temperature, pressure and flow rate.

ADEV has a wide experience in process and can provide the 8864 analyser combined with a sample and condition system designed for the specific application requirements. Contact ADEV for details



Measuring Principle

The measuring principle on which the analysis is based is linked to the use of Zirconium oxide which, at high temperatures, can behave like a solid state electrolyte, developing an electromotive force on two electrodes placed in contact with different O2 concentrations (partial pressures), proportional to the temperature in Kelvin degrees (°K) and the logarithm of the ratio between the two pressures PO2’ and PO2” in accordance with Nernst’s well-know ratio:



E = RT / nF (Lg P02’ / P02“)



R = Perfect gas constant (8,31 Joule/degree bulk)

F = Faraday’s constant

T = Absolute temperature in °Kelvin

n = 4



The inner sensing element is a based on a proprietary ADEV technology (micro-pod) and features a solid state reference that completely eliminate the need of a reference air flow, making the instrument very easy and practical to use in field.
