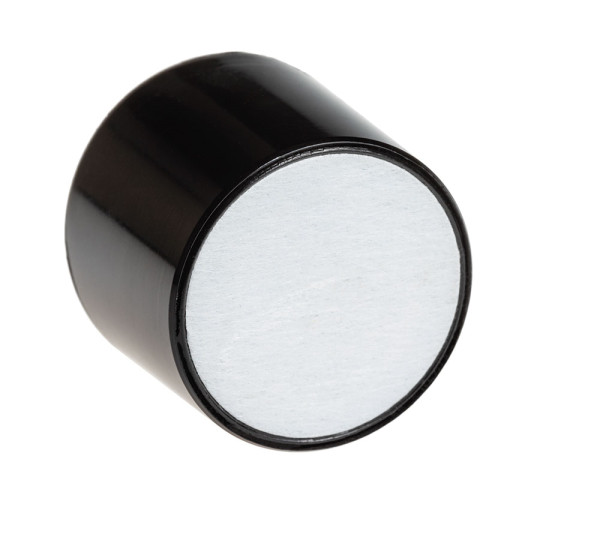

ExplorIR®-M

Miniature footprint CO2 Sensor - Fit and forget, fully autonomous operation!

ExplorIR®-M is a miniature CO2 sensor, capable of measuring up to 100% concentration. Its compact and robust design enables easy integration into gas monitoring and detection systems.

ExplorIR®-M is specifically designed for applications that require the sensor to operate... mehr
Produktinformationen "ExplorIR®-M"

ExplorIR®-M is specifically designed for applications that require the sensor to operate reliably in extreme environmental conditions, especially where the pressure, temperature or vibration regime is particularly harsh. The ExplorIR®-M uses GSS patented solid-state optical technology, which enables the sensor to provide high accuracy CO2 measurement capability over an extended lifetime.



Spezifikation

Co2 Sensor Specifications

Measurement Ranges

0-5%, 0-20%, 0-60%, 0-100%

Accuracy (typ.)

0-60%   ±(70ppm +5% of reading)

0-100%±(300ppm +5% of reading)

Time to 1st Reading

<1.2 seconds

Response Time

<30 Seconds (Diffusion limited)

Readings per Second

2

Sample Method

Solid-state LED NDIR Diusion



Electrical and Mechanical Specifications

Measurement Output

UART

Supply Voltage

3.25V - 5.5V

Power Consumption (typ.)

3.5mW @ 3.3V

Dimensions and Weight

ø20.9mm x 18.1mm, 4g



Operating Conditions

Operating Conditions – Temperature

0°C to 50°C (Standard)

-25°C to 55°C (Extended)

Operating Conditions – Humidity

0-95% RH, non-condensing

Storage Conditions – Temperature

-40°C to +70°C

Pressure Dependence

500mbar - 10bar

Sensor Lifetime

>15 years

Environmental Compliance

RoHS and REACH
